One vendor for routing, one for the filtering fleet, and the same build at all ten locations. A uniform platform is not tidiness for its own sake - it is what lets a change be validated once and deployed everywhere, and what makes an escalation at four in the morning short.
We run Juniper end to end, and have for long enough to have opinions about it. Routing and switching are Juniper at every site; the filtering cluster is Dell, uniformly, with NVIDIA ConnectX-8 and BlueField-3 adapters - the cards the XDP program attaches to. One platform everywhere means a rule verified at one site behaves identically at the other nine.
Nothing in the path is singular. Every location runs at least two MX304 routers and at least two QFX10008 switches, so any one chassis can be lost - or taken out for an upgrade during working hours - without the site losing traffic. The QFX10008 does double duty: the fabric inside the site that the filtering cluster hangs off, and the spine and edge switching that carries our own backbone between locations.

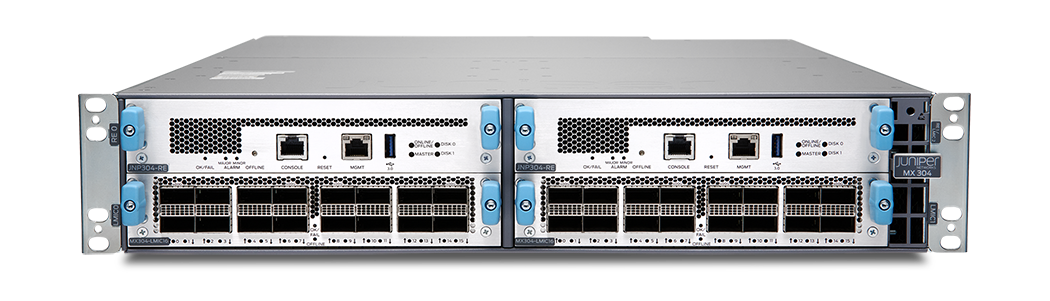

Border and edge routing at every point of presence

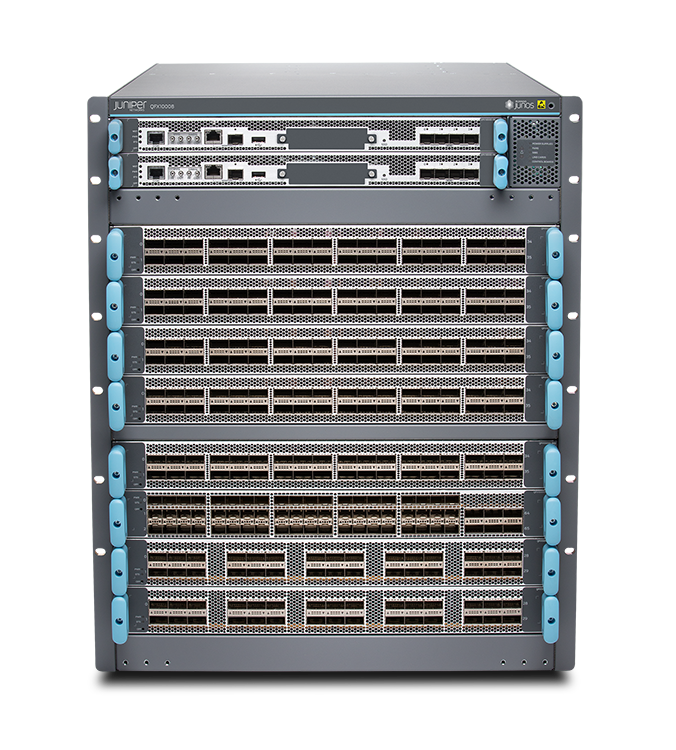

Fabric within each site, and spine and edge switching between locations

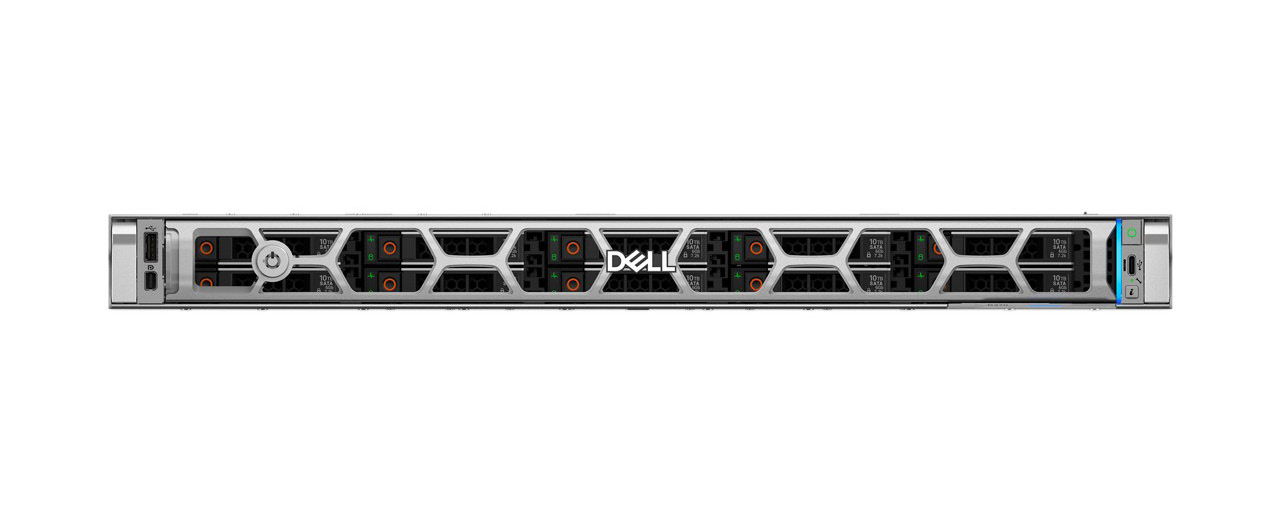

The scrubbing cluster itself, one filter per server

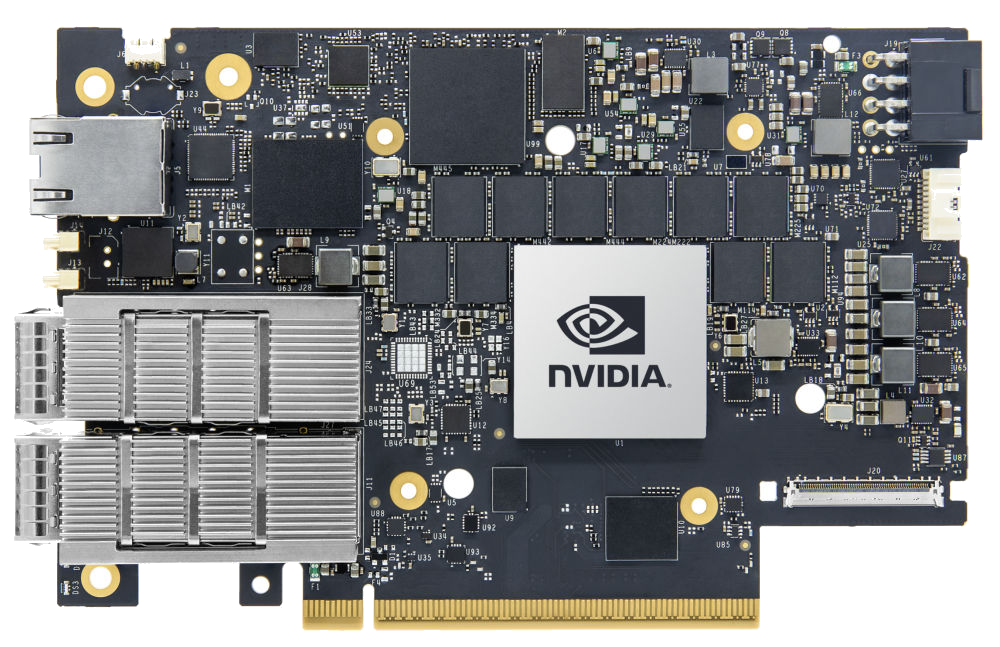

Where the XDP program attaches, in the driver
Every scrubbing location runs a filtering cluster of ten servers or more, sharing the load by weighted ECMP. Each holds its proportional share of every budget, so the group enforces the figure that is written down rather than a multiple of however many machines happen to be racked. Adding one raises capacity without loosening a single limit.
A minimum of two routers and two switches at every location, carried over EVPN-MPLS with no single point of failure in the path. A failed link, line card or whole chassis is a re-convergence rather than an outage, and the traffic that was on it is already somewhere else before anyone is paged.
Identical hardware and identical software everywhere. A change is proven at one site before the other nine follow it unchanged, a spare part fits at any location, and an engineer who knows one site knows all ten.
